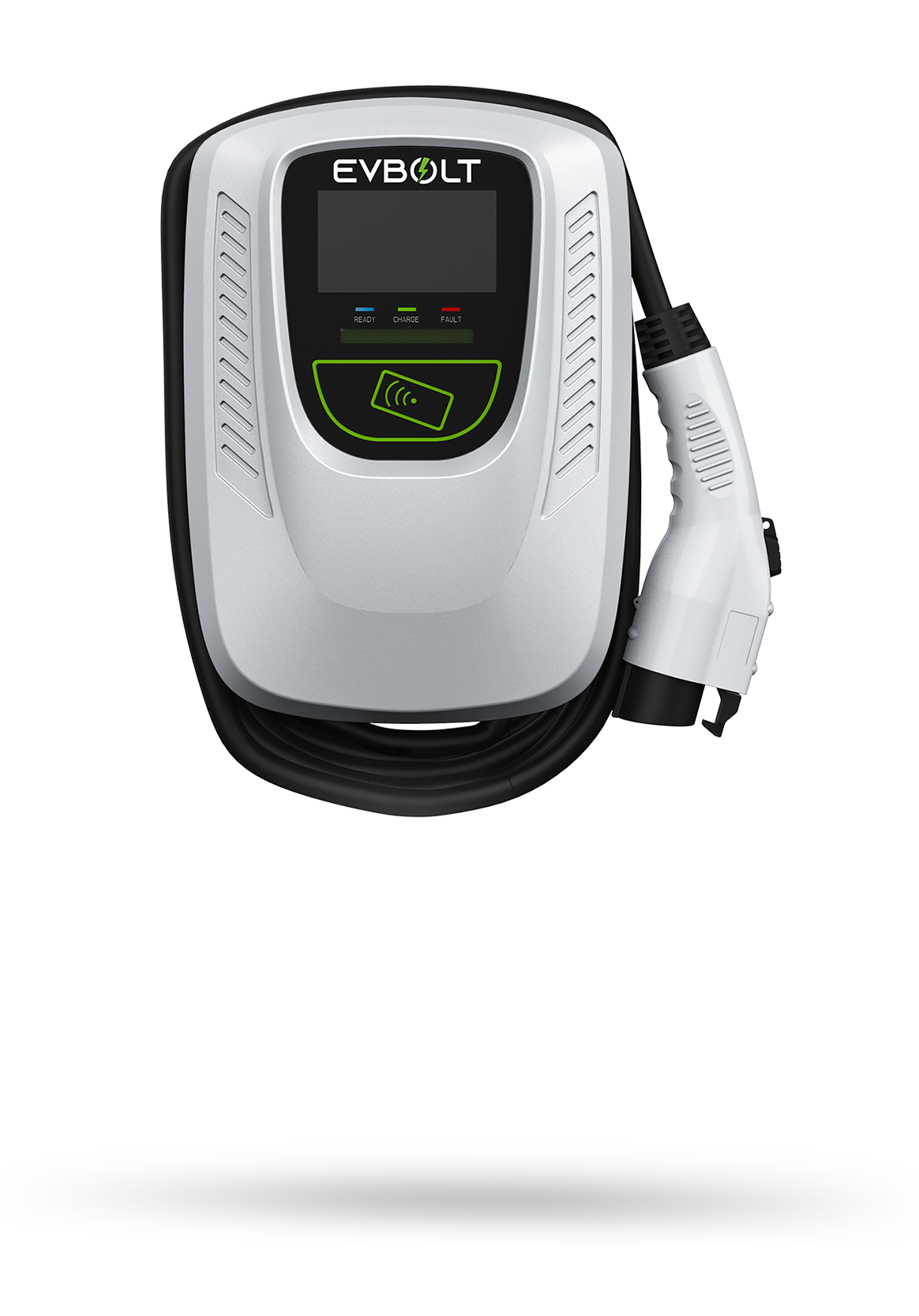

EVB-AC-J10 - Rapid Level 2 EV Charging Station (11.5kW)

The EVB-AC-J10 is a high-performance Level 2 EV charging station designed to provide rapid and reliable charging with a power output of up to 11,500 watts (11.5 kW). Built with future-proof technology, this industry-leading charging station combines an elegant plug-and-play design with advanced internal technologies to deliver an exceptional charging experience. Ideal for both public and commercial settings, the EVB-AC-J10 ensures quick, efficient, and reliable charging for a wide range of electric vehicles.

• Powerful Performance: Delivers up to 11,500 watts (11.5 kW), making it ideal for fast Level 2 charging, perfect for commercial, public, or fleet charging stations.

• Innovative Technology: Built with cutting-edge internal technologies to ensure efficient charging, easy integration, and future compatibility with new EV models.

• User-Friendly Design: The plug-and-play design simplifies installation and operation, providing a hassle-free user experience for both operators and drivers.

Specifications Sheet

• Model: EVB-AC-J10

• Charging Type: Level 2 AC Fast Charger

• Output Power: 11.5 kW (11,500 watts)

• Charging Time:

  • 80% charge in approximately 4-5 hours (depends on the EV’s battery capacity and state of charge)

• Input Voltage: 208V - 240V AC (Single-phase)

• Charging Current: 48 amps

• Charging Interface: Type 1 or Type 2 (depending on the model)

• Display: LED indicator lights for charging status

• Weather Resistance: IP54-rated, suitable for indoor and sheltered outdoor installations

• Operating Temperature Range: -20°C to 50°C

• Dimensions:

  • Height: 48 inches

  • Width: 12 inches

  • Depth: 12 inches

• Weight: Approx. 120 kg

• Connectivity:

  • Wi-Fi and Ethernet for remote monitoring, diagnostics, and software updates

  • Bluetooth connectivity for easy setup and mobile app control

• Payment Systems:

  • RFID, Mobile App Payments, Credit/Debit Card (optional)

• Certifications: CE, UL, RoHS compliant

• Warranty: 3-year limited warranty

Key Features and Benefits

• Fast Level 2 Charging: With 11.5 kW output, the EVB-AC-J10 provides rapid charging for EVs, reducing downtime and increasing vehicle availability for drivers.

• Compact & Efficient: Its elegant plug-and-play design ensures easy installation and use, making it an ideal solution for both public and private charging stations, including workplaces and commercial properties.

• Future-Proof Technology: Designed with innovative internal technologies to stay compatible with future EV models and emerging charging standards, ensuring long-term reliability and performance.

• Real-Time Monitoring: Wi-Fi and Ethernet connectivity allow for remote diagnostics, performance monitoring, and software updates, ensuring your station is always up-to-date.

• Flexible Payment Options: The charger supports multiple payment methods, including RFID, mobile app payments, and credit/debit cards.

• Weatherproof & Durable: With an IP54 rating, the charger is protected against dust and water, making it suitable for use in a variety of indoor and sheltered outdoor environments.

• Energy Efficient: Designed for high efficiency and low operating costs, the EVB-AC-J10 ensures reliable performance while minimizing energy consumption.

The EVB-AC-J10 is an excellent solution for commercial and public charging locations, offering fast, reliable, and efficient Level 2 charging with a sleek, user-friendly design. Its 11.5 kW power output, future-ready technology, and easy installation make it a standout choice for electric vehicle infrastructure. Let me know if you need additional details or adjustments!
