| Devices | |
|---|---|
| Included Camera Access License | 32 |
| Recording | |
| Recording Schedule | 32 |
| Bandwidth | |
| Incoming Bandwidth | 10000 Mbps |
| Outgoing Bandwidth | 10000 Mbps |
| Decoding | |
| Video Format | MJPEG, H.264, H.265 |
| Decoding Resolution | Up to 12 MP |
| Decoding Capability* | Display with 1080P Monitor D1(704*576)@30fps=32ch 2MP(1920*1080)@30fps=25ch 5MP(2592*1944)@30fps=11ch 12MP(4000*3000)@20fps=5ch |
| Event & Alarm | |
| Event and Alarm Rules | 1000 |
| Users & Roles | |
| Concurrent Accesses via Clients, App Clients | 300 |
| Users | 1000 |
| Roles | 100 |
| Local Viewing | |
| Local Viewing | Support |
| System | |
| Main Processor | 2.0 GHz Intel Celeron Series |
| Memory | 2*4GB DDR4 |
| Network Interface | 4*2.5 GbE RJ-45 ports |
| Operating System | Microsoft Windows 10 IoT Enterprise 64bit |
| GPU Options | Integrated GPU |
| Auto Power On | Support |
| Auxiliary Interface | |
| HDD Drives (Video Data) | 6*SATA (3.5″ or 2.5″) |
| SSD Drive (Operating System) | M.2 SSD(1*256 GB Pre-installed) |
| RAM | 2*SO-DIMM DDR4 2666 Slot (2*4GB /2*8GB Pre-installed) Support Up to 16GB Support Dual-Channel Mode |
| Capacity | Up to 20TB capacity for each disk |
| Recording Storage Capacity | Up to 6*20TB raw |
| LAN | 4*2.5Gbps LAN |
| PCI-E | 1*PCI-E4 slot |
| Display | 1*HDMI Port 1*DP Port Support independent and synchronous display |
| Internal I/O | 1*Power Connector(ATX_PWR 24pin) 1*Power Connector(CPU_PWR 4pin) 1*CPU Fan 1*COM Connector (9pin) 1*Front Panel Connector |
| Audio | 1* HD Audio Connector |
| USB Interface | Front panel: 2*USB 2.0 Rear panel: 2*USB 2.0, 2*USB 3.0 |
| Power Supply | AC 100-240V, 50-60Hz |
| General | |
| Consumption | ≤30W(without HDD) |
| Working Temperature | 0°C to 35°C (32°F to 95°F) |
| Working Humidity | 10% to 90% RH (no freezing and no condensation) |
| Dimension | 440mm×420mm×88.2mm |
| Weight | 8.1Kg |
| Warranty | 3 Years |

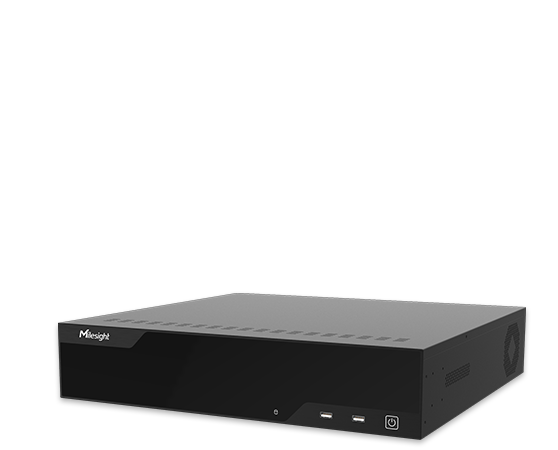

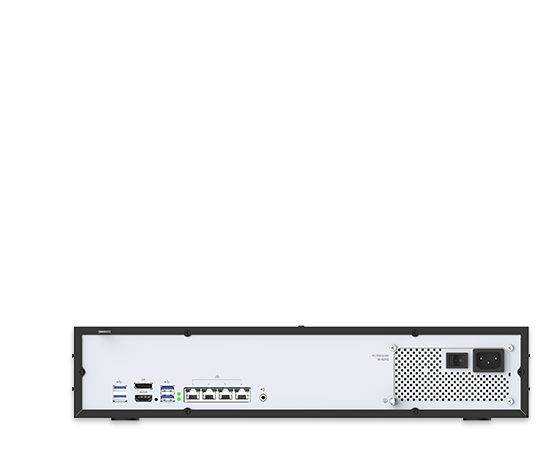

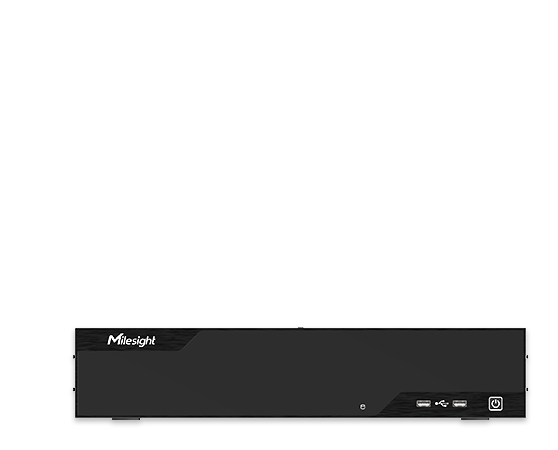

All-in-one VMS Appliance – VE0602-A
Order in the next for
$3,121.00
- Model : VE0602-A
- Resolution : All-in-one VMS Appliance with 36-CH License, 6 Disk Slots.
- Up to 32 Channels Connectivity
- Pre-loaded with Milesight VMS Server & Client
- Central Management for Single Site & Multiple Sites
- High Scalability
- 6*20TB Storage
- Ready-to-go Design for Easy Installation
- N+M Failover
