| Camera |
| Name |

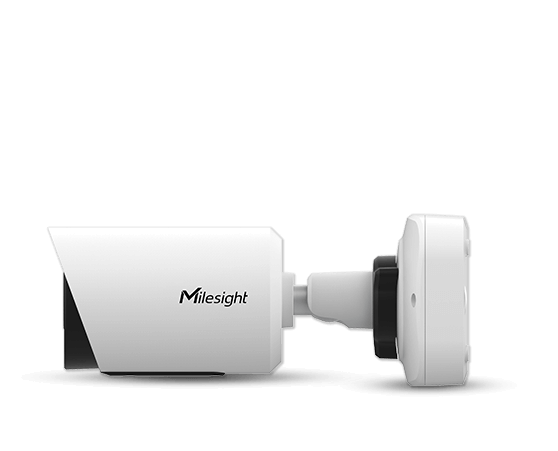

4K AI Vandal-proof Mini Bullet Network Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.012Lux @F1.6 \nB/W: 0Lux with IR on |
| WDR |
120dB Super WDR |
| Lens |
2.8mm/ 4mm/ 6mm @F1.6 |
| Mount |
M12 |
| Field of View |
H110°/D126°/V60°(2.8mm) \nH91°/D106°/V50°(4mm) \nH55°/D63°/V32°(6mm) |
| Shutter Time |
1/100000s∼1s |
| Day/Night Mode |
Day/Night/Auto/Customize/Schedule |
| IR Distance |
Up to 30m |
| S/N |
>55dB |
| Video |
| Max. Image Resolution |
3840x2160 |
| Primary Stream |
60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series) |
| Secondary Stream |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) \n50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream |
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) \n50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate |
16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Image Settings |
Saturation/Brightness/Contrast/Sharpness |
| Interface |
| Ethernet |
1*RJ45 10M/100M Ethernet Port |
| Network |
| Network Storage |
NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols |
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Intelligent Analytics |
| Video Analysis |
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report |
Count the number of people entering or exiting |
| System |
| Storage |
Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function |
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support |
Yes, Voice&Video-over-IP |
| Event Trigger |
Motion Detection, Network Disconnection, etc. |
| Event Action |
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility |
ONVIF Profile G & S & T, API |
| General |
| Working Temperature |
-40℃∼60℃ |
| Working Humidity |
0∼90%(Non-condensing) |
| Power Supply |
PoE(802.3af) |
| Power Consumption |
4.2W MAX, 5.8W MAX (With IR on) |
| Weather Proof |
Up to IP67-rated for weather-resistant performance |
| Housing |
Vandal-proof IK10-rated metal housing |
| Weight |
610g(Junction Box Version) / 450g(Cable Out Version) |
| Dimensions |
97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version) |
| Warranty |
3/5 Years |
