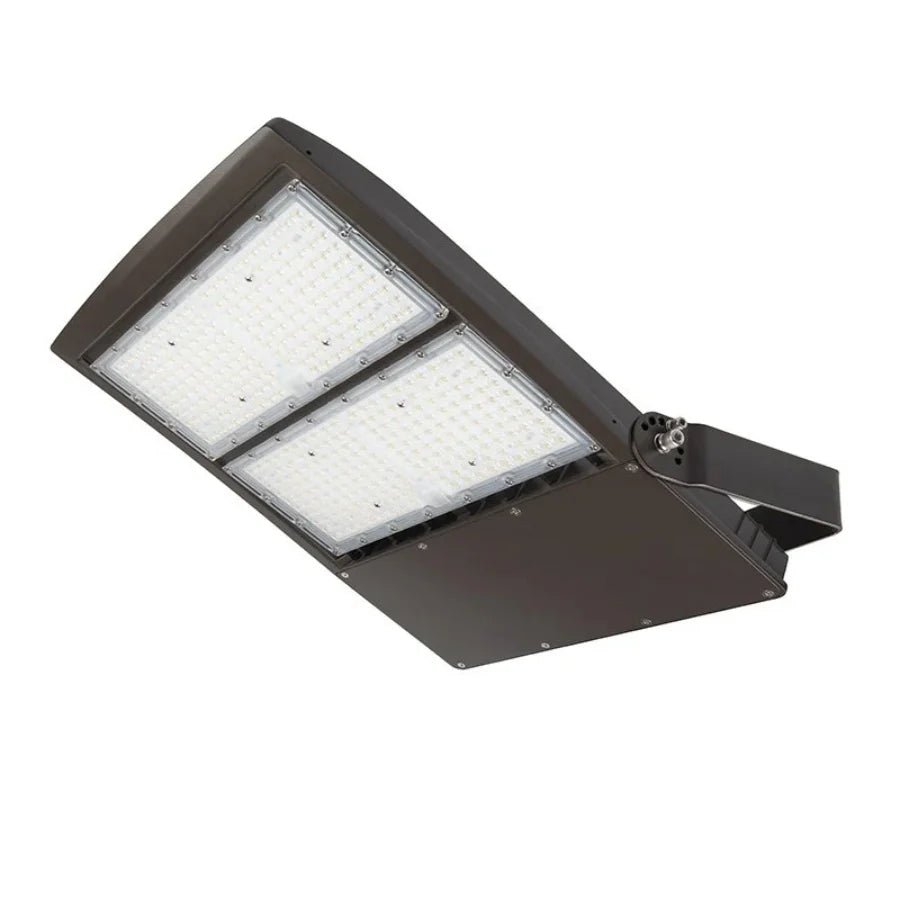

The SwitchToLED 300W LED Area Flood Light delivers powerful illumination with 40,500 lumens at a crisp 5000K cool white color temperature. Designed with a Type V-M distribution pattern, it provides uniform lighting across large open spaces, making it perfect for parking lots, campuses, parks, and general area lighting.
Constructed with a bronze-coated die-cast aluminum housing and a durable polycarbonate lens, this fixture is IP65 rated, ensuring long-lasting performance in harsh outdoor environments. Equivalent to a 1,000W metal halide, it provides significant energy savings while maintaining high brightness and reliability.
The fixture includes an optional photocell for automatic dusk-to-dawn operation and supports multiple mounting options, offering flexibility for different installation needs.
Certified by UL and DLC 5.1 Premium, this LED area light ensures efficiency, safety, and compliance, backed by a 5-year warranty.
Key Features
-
Brand Quality – SwitchToLED engineered for performance and durability
-
High Brightness – 40,500 lumens at 300W (135 lm/W efficacy)
-
Energy Saving – Replaces 1,000W metal halide fixtures
-
Type V-M Distribution – Ideal for lighting large, open areas evenly
-
Durable Build – Bronze-coated aluminum housing with polycarbonate lens
-
Weatherproof Protection – IP65 rated for outdoor use
-
Optional Photocell – For dusk-to-dawn operation (installation required)
-
Certified Safety – UL and DLC 5.1 Premium listed
-
Long Lifespan – 50,000 hours rated life (L70)
-
Warranty – Backed by 5 years of SwitchToLED support
Technical Specifications
| Specification |
Description |
| Brand |
SwitchToLED |
| Wattage |
300W |
| Lumens |
40,500 lm |
| Efficacy |
135 lm/W |
| CCT (Color Temp.) |
5000K (Cool White) |
| Distribution Type |
Type V-M |
| Equivalency |
1,000W Metal Halide |
| Housing Material |
Die-Cast Aluminum (Bronze-Coated) |
| Lens Material |
Polycarbonate |
| Finish |
Bronze |
| Dimmable |
Yes (0–10V) |
| Operating Voltage |
120–277 VAC |
| Current Draw |
2.5 A @ 120V / 1.1 A @ 277V |
| Power Factor |
≥0.9 |
| BUG Rating |
B5-U0-G4 |
| Surge Protection |
10kV Integrated |
| IP Rating |
IP65 – Waterproof, Wet Location Rated |
| EPA Rating |
2.1 ft² |
| Operating Temp. |
-35°C to +50°C (-31°F to +122°F) |
| Rated Life (L70) |
50,000 Hours |
| Certifications |
UL, DLC 5.1 Premium |
| DLC Product ID |
S-PAJ9WF |
| UL File Number |
E366643 |
| Input Connection |
Pigtail |
| Wire Gauge |
18 AWG (L/N/G), 22 AWG (Dimming) |
| Mounting |
Yoke Mount (Multiple Mount Options Available) |
| Photocell |
Optional (installation required) |
| Warranty |
5 Years |
