MODERN 7

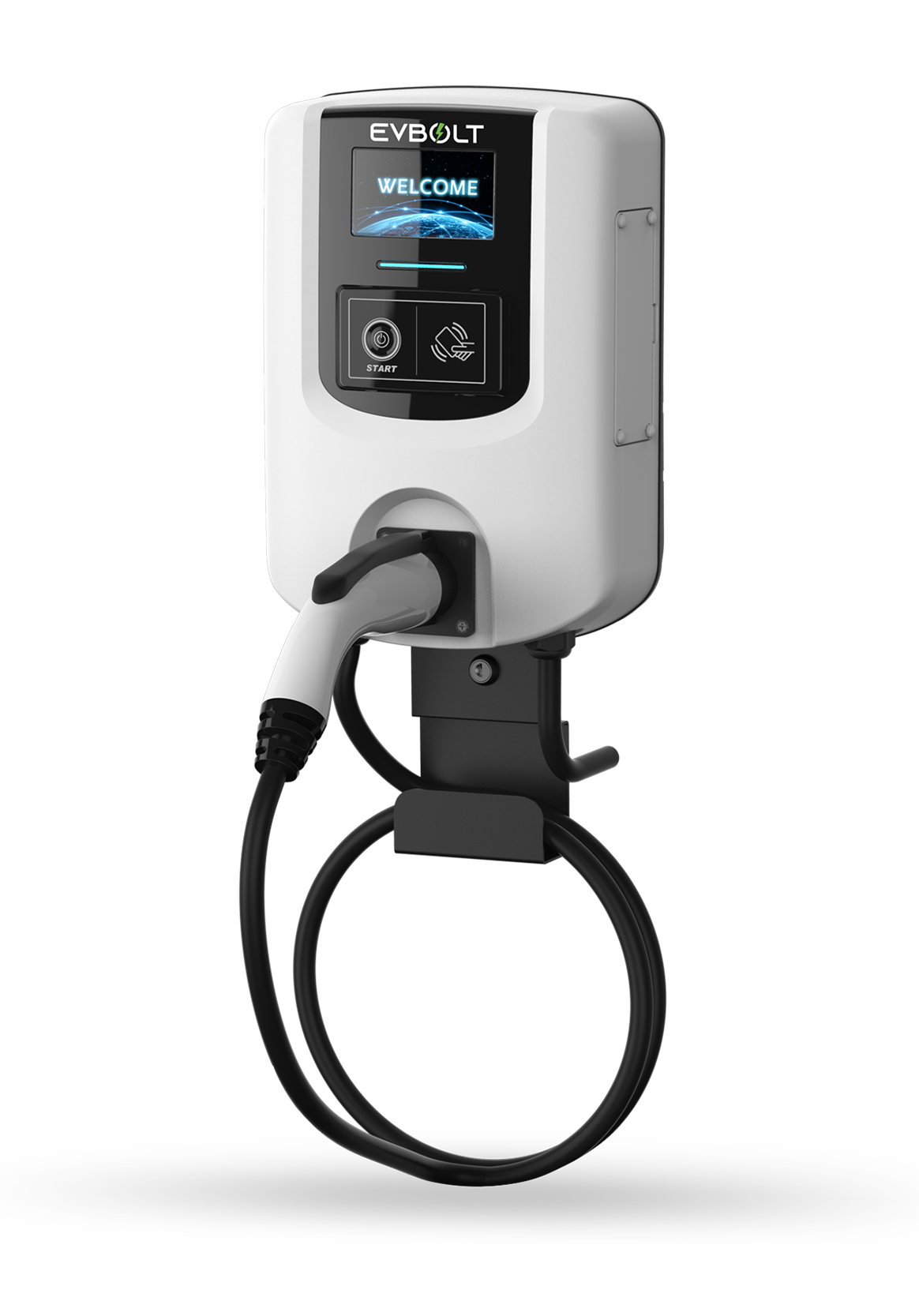

EVB-AC-PAH7 - 7.5kW AC Charger with LCD Display

The EVB-AC-PAH7 is a powerful 7.5kW AC charger, designed to provide rapid and efficient charging for electric vehicles in both commercial and residential settings. Equipped with a 5″ LCD panel, it displays real-time charging statistics, giving users immediate insights into the charging process. Whether used in commercial charging stations or private homes, the EVB-AC-PAH7 combines high performance, sleek design, and intuitive functionality to meet the needs of EV owners and operators alike.

• Rapid Charging: Delivers 7,500+ watts (7.5 kW) of charging power for a faster, more efficient charging experience.

• Real-Time Monitoring: The 5″ LCD panel allows users to track charging progress, including voltage, current, and charge time.

• Flexible Use: Suitable for both commercial and residential applications, offering versatility and easy installation.

Specifications Sheet

• Model: EVB-AC-PAH7

• Charging Type: AC Fast Charger

• Output Power: 7,500+ watts (7.5 kW)

• Charging Time:

  • Charges EVs faster than standard home outlets, reducing charge time significantly (time varies by vehicle battery size).

• Input Voltage: 208V - 240V AC (Single-phase)

• Charging Current: 32 amps

• Charging Interface: Type 1 or Type 2 (depending on model)

• Display: 5” LCD Panel showing real-time charging statistics such as voltage, current, and time remaining

• Weather Resistance: IP54-rated, suitable for both indoor and outdoor use (sheltered environments)

• Operating Temperature Range: -20°C to 50°C

• Dimensions:

  • Height: 14 inches

  • Width: 8 inches

  • Depth: 5 inches

• Weight: Approx. 8-10 kg

• Connectivity:

  • Wi-Fi and Ethernet (optional) for remote monitoring and diagnostics

• Certifications: CE, UL, RoHS compliant

• Warranty: 2-year limited warranty

Key Features and Benefits

• Powerful & Fast: The 7.5 kW charging output ensures rapid charging for EVs, reducing downtime and improving vehicle availability.

• Real-Time Data Display: The 5” LCD panel displays essential data during the charging process, including voltage, current, and charging time remaining, giving users full visibility of the charging session.

• Versatile Installation: The EVB-AC-PAH7 is designed for both commercial and residential installations, offering a reliable solution for home charging or public-use stations.

• User-Friendly: With its LCD display and intuitive operation, users can easily monitor and manage their EV charging sessions.

• Compact Design: The charger’s compact and sleek design allows it to fit seamlessly into homes, garages, parking areas, or public charging stations without taking up excessive space.

• Durable & Weatherproof: With an IP54 rating, this charger is built to withstand dust and water, making it suitable for outdoor use in sheltered environments.

• Advanced Connectivity: Optional Wi-Fi and Ethernet connectivity for remote monitoring, allowing users to track charging progress, troubleshoot, and perform software updates remotely.

• Safe & Reliable: Built with overcurrent protection, surge protection, and other safety features to ensure safe and efficient charging at all times.

The EVB-AC-PAH7 is an ideal solution for those looking for fast, reliable, and user-friendly charging in both commercial and residential environments. Whether you need a compact, powerful charger for your home or a robust solution for a public station, this charger provides everything you need to ensure a quick and efficient charging experience. Let me know if you'd like to dive deeper into any of the features or specs!
