ASTEROPE 6

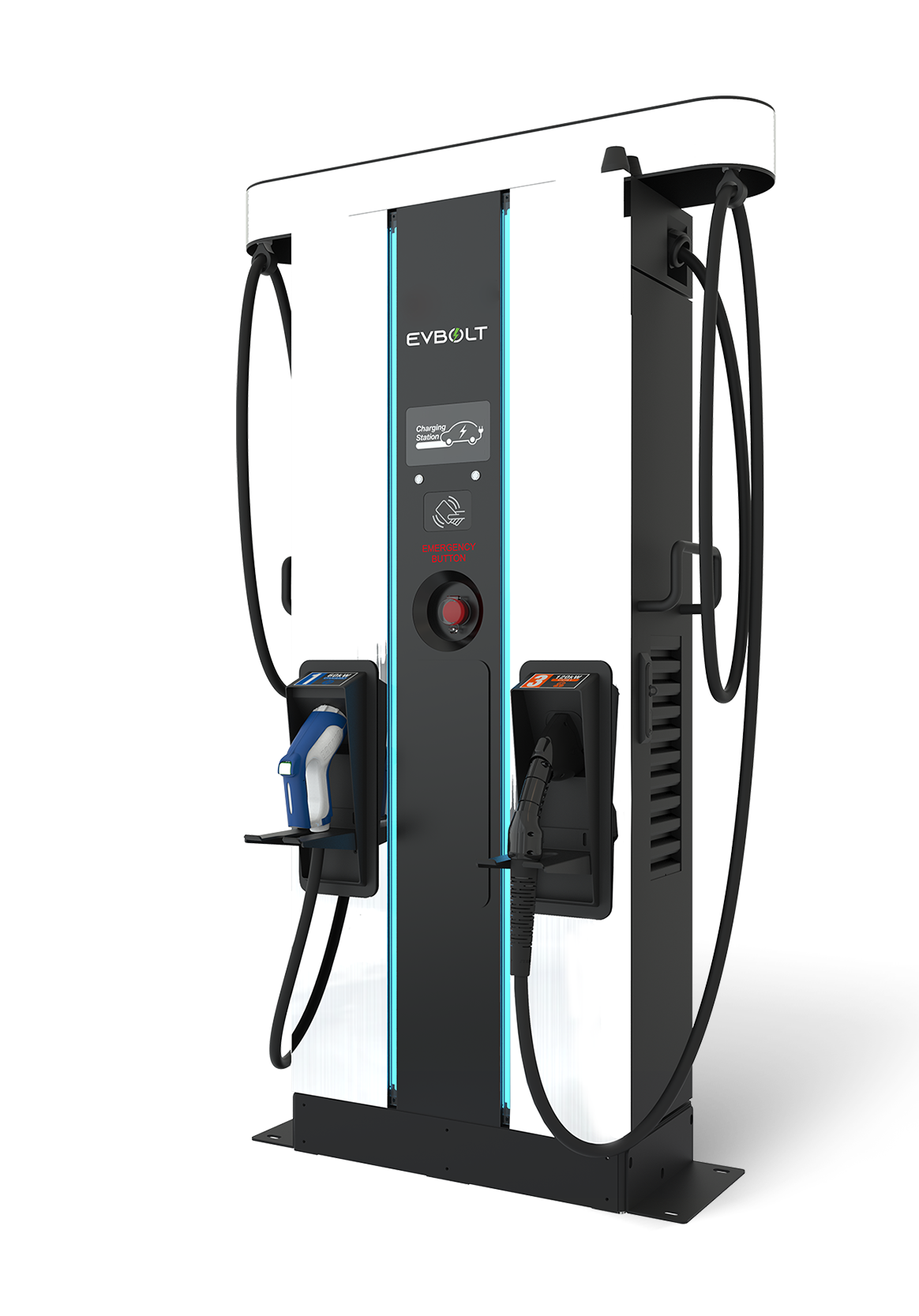

EVB-DC-PS60 - 60kW DC Fast Charger

The EVB-DC-PS60 is a high-performance 60kW DC fast charging system designed for reliable, efficient, and rapid charging of electric vehicles. With its sleek design and small footprint, this charger offers a multi-standard charging interface, ensuring compatibility with a wide range of electric vehicles. It is capable of charging two vehicles concurrently, providing flexibility and efficiency for commercial charging locations, fleet operations, and public charging stations. Designed for minimal maintenance and maximum uptime, the EVB-DC-PS60 ensures a consistent and reliable charging experience for EV drivers.

• Dual Charging Capability: Capable of charging two vehicles simultaneously, increasing throughput and maximizing efficiency at high-traffic locations.

• Multi-Standard Compatibility: Supports various charging standards to accommodate different EV models, making it ideal for multi-brand fleets and diverse charging environments.

• Reliable Performance: Engineered for low maintenance and long-term durability, ensuring that the charger continues to perform reliably over time.

Specifications Sheet

• Model: EVB-DC-PS60

• Charging Type: DC Fast Charger

• Output Power: 60,000 watts (60 kW)

• Charging Time:

  • Rapid charging for EVs, reducing downtime (time varies by vehicle battery size and state of charge).

  • Can charge two vehicles simultaneously, optimizing charging efficiency.

• Input Voltage: 380V - 480V AC (Three-phase)

• Charging Current: 80 amps (per vehicle)

• Charging Interface: CCS1, CCS2, CHAdeMO (multi-standard support)

• Display: LCD Display for real-time charging data, including voltage, current, and charge time remaining

• Weather Resistance: IP54-rated for dust and water resistance, suitable for both indoor and outdoor installations

• Operating Temperature Range: -20°C to 50°C

• Dimensions:

  • Height: 47 inches

  • Width: 28 inches

  • Depth: 15 inches

• Weight: Approx. 350 kg

• Connectivity:

  • Wi-Fi and Ethernet connectivity for remote monitoring, diagnostics, and firmware updates

  • Optional Mobile App for users to check charging status and progress remotely

• Certifications: CE, UL, RoHS compliant

• Warranty: 3-year limited warranty

Key Features & Benefits

• Dual Charging Capability: The EVB-DC-PS60 allows for the simultaneous charging of two vehicles, maximizing throughput and reducing wait times at high-traffic charging stations.

• Multi-Standard Charging Interface: Supports CCS1, CCS2, and CHAdeMO, making it compatible with a wide range of electric vehicles from different manufacturers.

• Fast & Efficient: With 60 kW of power output, it provides rapid charging for EVs, cutting down on charge time and enhancing vehicle availability.

• Compact & Space-Efficient: Designed with a small footprint, the charger can be easily integrated into existing charging networks, providing high performance in locations where space is at a premium.

• Weatherproof Design: IP54 rating ensures that the charger is durable and suitable for use in outdoor environments, providing consistent performance even in harsh conditions.

• Remote Monitoring & Diagnostics: The Wi-Fi and Ethernet capabilities allow operators to remotely monitor charging sessions, troubleshoot issues, and update software without needing to be on-site.

• Low Maintenance: Built with durability in mind, the EVB-DC-PS60 requires minimal maintenance, making it an excellent choice for high-use environments.

• Safety Features: Equipped with overcurrent protection, surge protection, and EMI shielding to ensure safe and reliable operation at all times.

The EVB-DC-PS60 is ideal for commercial charging locations, fleet operations, and public EV charging networks, offering dual-port charging, multi-standard compatibility, and a compact, space-efficient design. It ensures that EV drivers can access fast, reliable charging while providing businesses with a low-maintenance solution that maximizes uptime and customer satisfaction.
